Switch Mode Power Supplies
Encapsulated Constant Current
TLM4036DC-1000

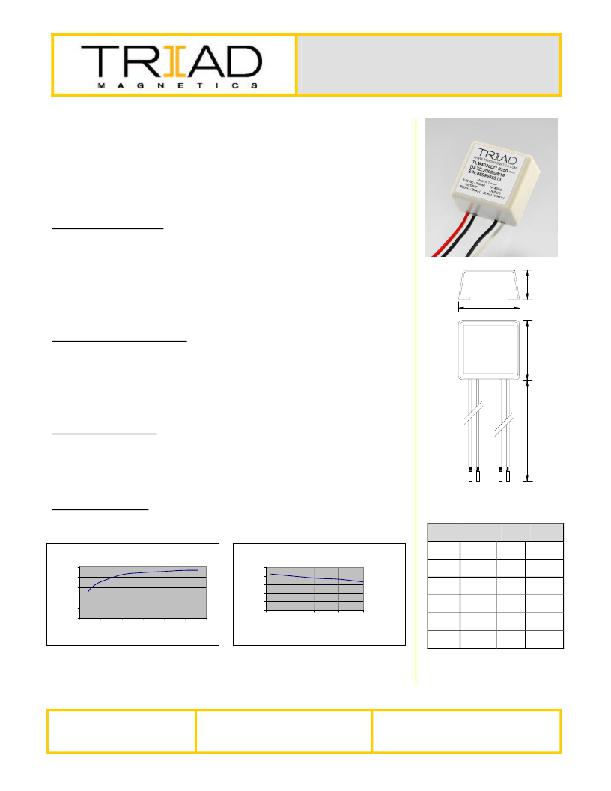

Description:
The TLM4036DC-1000 is a compact and lightweight Constant Current Switch Mode Power Supply.
Waterproof design - IP66, NEMA 4 suitable for dry and damp locations.
Convection cooled plastic housing. Some typical applications include LED’s, Lighting, etc.
Specifications (@25C)
Electrical Specifications:
Input Voltage:
Power Factor:
Output*:
Efficiency:
Maximum power:
Output Current Regulation:
Protection:
See Table
>0.9 at full load, 115Vac
1.00Adc±5%, Vout range: See Table
90% Typical at full load
26W
±5%
Short circuit protection: Auto-recovery
*Subject to Max power limitations
32mm
TR AD
Environmental Specifications:
Operating Temperature:
Storage Temperature:
-40 to 60°C (De-rating: 1%/°C from 60-70°C)
-40 to 80°C
][
TLD1036DC-XXXX
P/N:xxxxx
DATE:xxxxx
Operating Humidity:
Cooling:
Vibration:
MTBF:
5 to 95% RH (non-Condensing)
Convection cooling
5 to 50Hz
>100,000 Hours at full load and 25°C ambient conditions
XXX
OUT
+ -
XXX
IN
- +
General Specifications:
Connections:
Dimensions (WxLxH):
Weight:
Warranty:
Performance Graphs:
4in leads - Input: 18 AWG; Output: 18 AWG
32.0x31.0x15.0mm
25g
3 years @ 40°C, 100% Load
Vin (DC)
Vout (DC)
IDC (A)
Max Watts
1.000
EFFIENCY VS. Vout
1.000
Efficiency VS. Vin
30
28
2-26
2-24
1.0
1.0
26.0
24.0
0.800
0.900
0.600
0.400
0.200
0.800
0.700
0.600
0.500
24
15
2-20
2-12
1.0
1.0
22.0
13.0
0.000
0.00
5.00
10.00
15.00
20.00
25.00
30.00
10.00
15.00 20.00 25.00
INPUT VOLTAGE (DC)
30.00
12
2-10
1.0
10.0
OUTPUT VOLTAGE (DC)
10
2-8
1.0
9.0
RoHS Compliance: As of manufacturing date February 2005, all standard products meet the requirements of
2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’ website for the
most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
